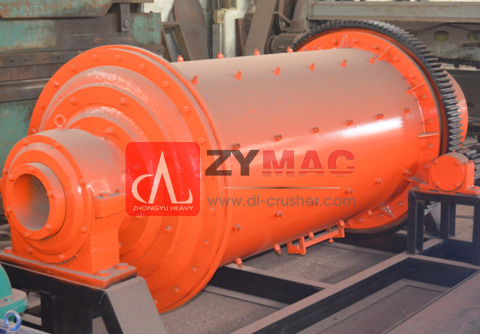

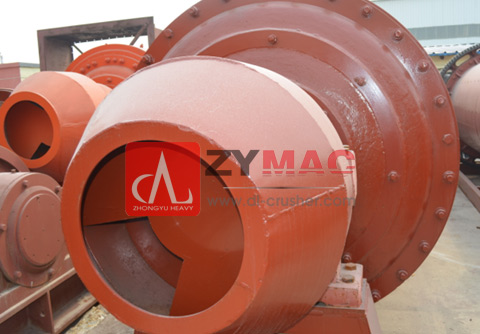

Ball mill

Feeding particle size: ≤25mm

The ball mill is a key gear for grinding crushed materials, and is widely used in production line for powders such as cement, silicates,refractory material, fertilizer, glass ceramics and etc; it is a type of grinder used

Download Product Manual (PDF file)

    Features and Benefit:

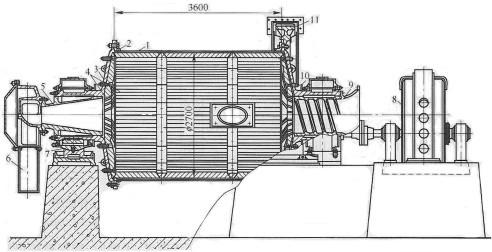

    1, Ball mill is composed of horizontal mill body, hollow axis for feeding and discharging materials, mill head and other parts.
    2, Mill body is cylindrical and fixed with steel liner plate; grinding medium is general-purpose steel ball and filled into the mill body based on different diameters and certain proportion, some grinding medium can also use steel blocks.
    3, the ball mill features stable performance and reliable operation.

    Working principle

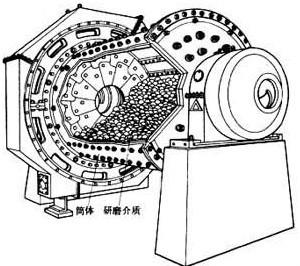

    Ball mill has two warehouse and rotates around horizontal axis; When ball mill is filled with partial materials and starts rotating,
    grinding medium in ball body are attached to the liner plate by force of inertia, centrifugal and friction and whilst taken to a certain
    height, then they fall and cast down to strike and grind materials due to their own gravity. After being ground coarsely in the first
    warehouse, materials will enter into the second warehouse for regrinding and finally discharged out. Industrial ball mill can operate
    continuously by fed at one end and discharging at the other end.
    The ball mill is a key gear for grinding crushed materials, and is widely used in production line for powders such as cement, silicates,refractory material, fertilizer, glass ceramics and etc; it is a type of grinder used
