Limestone production line

Output: 1500T/H
Configuration: Feeder-ZG2038; Heavy crusher III-PCZ1620,PC1615 ; three groups of vibrating screen

Limestone is an organic, sedimentary rock. This means it was formed from the remains of tiny shells and micro-skeletons deposited on the sea bed. They were compressed to form solid rock. Limestone is made up of calcium carbonate and reacts with diluted hydrochloric acid. Limestone is formed in layers - called bedding planes. These bedding planes contain vertical cracks called joints. Joints and bedding planes make the rock permeable.

the compressive strength of limestone is around 150Mpa, belongs to soft rock, so heavy crusher III is a reasonable and economic choise.

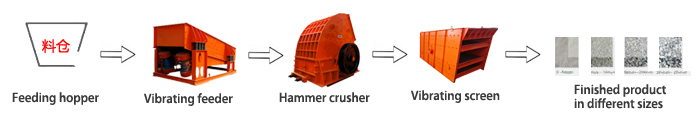

1500T/H limestone process flow

Projection view

Recommended equipments
1, Two vibrating feeder ZG2038, 1600-1800T/H
2, Two heavy crusher III PCZ1620, can crush blocky materials 700-800T/H
3, Two heavy crusher III PC1615 used in the seconary crushing, can crush block materials 400-500T/H
4, The primary vibrating screen 2YK3070, can screen 3 kinds of materials: soil(wast), blocky feedback material and materials sent to the secondary vibrating. The blocky feedback material will be transported to PCZ crusher by belt conveyor for secondary crushing.
5, The secondary vibrating screen 2YKZ3070 and the last vibrating screen 2YKZ3070.
