Calcite production line_Zhongyu Heavy Industry

Calcite production line

Output: 1000-1200T/H
Configuration: Feeder-ZG2038; Heavy crusher III -PCZ1620,PC1615 ; two groups of vibrating screen

calcite is a carbonate mineral and the most stable polymorph of calcium carbonate. The other polymorphs are the minerals aragonite and vaterite. Aragonite will change to calcite at 380-470°C, and vaterite is even less stable.

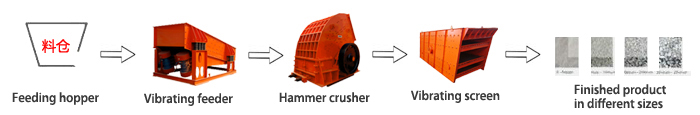

1000-12000T/H calcite process flow

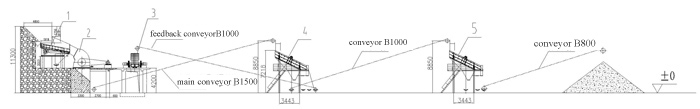

Projection view

1, Vibrating feeder ZG2038, feeding amount 1200-1400T/H
2, Heavy crusher III PCZ1620, can crush blocky materials 500-800T/H
3, Heavy crusher III PCZ1615, can crush blocky materials 360-420T/H
4, Two vibrating screen 3YK3070 side by side, The blocky feedback material will be transported to Heavy crusher III PCZ 1615 by belt conveyor for secondary crushing.
5, Two vibrating screen 2YK3070, the screened finished products will be sent to pile by belt conveyor.
